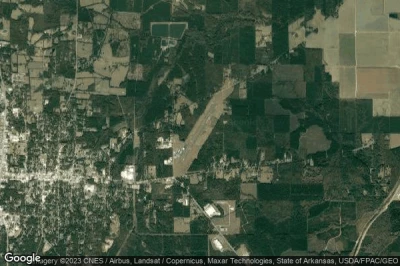

NOTAM et Infos de l'aéroport de Monticello Municipal Ellis Field (Etats-Unis) KLLQ

ODP MONTICELLO MUNI/ELLIS FLD,

MONTICELLO, AR.

TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...

TAKEOFF OBSTACLE NOTES: RWY 3: TERRAIN 24 FT FROM DER, 495 FT LEFT

OF CENTERLINE, 241 FT MSL.

TRAVERSE WAY, FENCE BEGINNING 139 FT FROM DER, 436 FT RIGHT OF

CENTERLINE, UP TO 18 FT AGL/245 FT MSL.

TRAVERSE WAY 204 FT FROM DER, 464 FT RIGHT OF CENTERLINE, 18 FT

AGL/246 FT MSL.

POLE 281 FT FROM DER, 448 FT RIGHT OF CENTERLINE, 31 FT AGL/260 FT

MSL.

POLE 350 FT FROM DER, 571 FT RIGHT OF CENTERLINE, 33 FT AGL/261 FT

MSL.

TREE 375 FT FROM DER, 397 FT RIGHT OF CENTERLINE, 59 FT AGL/289 FT

MSL.

TREES, POLE BEGINNING 491 FT FROM DER, 405 FT RIGHT OF CENTERLINE,

UP TO 81 FT AGL/311 FT MSL.

TREES BEGINNING 652 FT FROM DER, 172 FT RIGHT OF CENTERLINE, UP TO

111 FT AGL/342 FT MSL.

POLE 655 FT FROM DER, 673 FT LEFT OF CENTERLINE, 32 FT AGL/272 FT

MSL.

TREE, POLES BEGINNING 690 FT FROM DER, 418 FT LEFT OF CENTERLINE,

END PART 1 OF 4

ODP MONTICELLO MUNI/ELLIS FLD,

MONTICELLO, AR.

UP TO 70 FT AGL/309 FT MSL.

TREES BEGINNING 1238 FT FROM DER, 480 FT LEFT OF CENTERLINE, UP TO

91 FT AGL/321 FT MSL.

TREE 1803 FT FROM DER, 790 FT LEFT OF CENTERLINE, 90 FT AGL/323 FT

MSL.

TREES BEGINNING 2053 FT FROM DER, 101 FT LEFT OF CENTERLINE, UP TO

91 FT AGL/326 FT MSL.

RWY 21: TERRAIN 1 FT FROM DER, 498 FT RIGHT OF CENTERLINE, 280 FT

MSL.

POLE 578 FT FROM DER, 552 FT RIGHT OF CENTERLINE, 34 FT AGL/310 FT

MSL.

TREE, POLE BEGINNING 640 FT FROM DER, 474 FT RIGHT OF CENTERLINE,

UP TO 62 FT AGL/338 FT MSL.

TREES, POLES BEGINNING 775 FT FROM DER, 1 FT RIGHT OF CENTERLINE,

UP TO 71 FT AGL/345 FT MSL.

POLE 1006 FT FROM DER, 730 FT LEFT OF CENTERLINE, 36 FT AGL/299 FT

MSL.

TREE 1338 FT FROM DER, 527 FT LEFT OF CENTERLINE, 78 FT AGL/343 FT

MSL.

TREES, POLE BEGINNING 1518 FT FROM DER, 137 FT LEFT OF CENTERLINE,

END PART 2 OF 4

ODP MONTICELLO MUNI/ELLIS FLD,

MONTICELLO, AR.

UP TO 97 FT AGL/354 FT MSL.

TREES, POLE BEGINNING 1808 FT FROM DER, 270 FT RIGHT OF CENTERLINE,

UP TO 72 FT AGL/349 FT MSL.

TREES, POLE BEGINNING 1931 FT FROM DER, 21 FT LEFT OF CENTERLINE,

UP TO 106 FT AGL/371 FT MSL.

TREES BEGINNING 2032 FT FROM DER, 454 FT RIGHT OF CENTERLINE, UP TO

74 FT AGL/357 FT MSL.

TREE 2492 FT FROM DER, 244 FT RIGHT OF CENTERLINE, 80 FT AGL/370 FT

MSL.

TREE 2706 FT FROM DER, 591 FT RIGHT OF CENTERLINE, 91 FT AGL/382 FT

MSL.

TREE 2830 FT FROM DER, 234 FT LEFT OF CENTERLINE, 95 FT AGL/375 FT

MSL.

TREES BEGINNING 2923 FT FROM DER, ON CENTERLINE, UP TO 97 FT

AGL/389 FT MSL.

TREE 3089 FT FROM DER, 896 FT LEFT OF CENTERLINE, 85 FT AGL/399 FT

MSL.

TREE 3400 FT FROM DER, 558 FT RIGHT OF CENTERLINE, 93 FT AGL/394 FT

MSL.

TREE 3548 FT FROM DER, 1253 FT LEFT OF CENTERLINE, 84 FT AGL/406 FT

END PART 3 OF 4

ODP MONTICELLO MUNI/ELLIS FLD,

MONTICELLO, AR.

MSL.

TREES BEGINNING 3552 FT FROM DER, 200 FT RIGHT OF CENTERLINE, UP TO

89 FT AGL/401 FT MSL.

TREE, POLES BEGINNING 3645 FT FROM DER, 241 FT LEFT OF CENTERLINE,

UP TO 105 FT AGL/417 FT MSL.

TREE 3721 FT FROM DER, 525 FT RIGHT OF CENTERLINE, 97 FT AGL/412 FT

MSL.

TREES, POLE, TRANSMISSION LINES BEGINNING 3847 FT FROM DER, 56 FT

RIGHT OF CENTERLINE, UP TO 93 FT AGL/414 FT MSL.

TRANSMISSION LINES BEGINNING 5147 FT FROM DER, 1040 FT RIGHT OF

CENTERLINE, UP TO 93 FT AGL/415 FT MSL.

TRANSMISSION LINES BEGINNING 5513 FT FROM DER, 1060 FT RIGHT OF

CENTERLINE, UP TO 56 FT AGL/416 FT MSL.

TRANSMISSION LINES, TREE, POLE BEGINNING 5638 FT FROM DER, 667 FT

RIGHT OF CENTERLINE, UP TO 46 FT AGL/417 FT MSL.

END PART 4 OF 4

OBST TOWER (ASN UNKNWOWN) 333721N0914805W (3.1NM SW LLQ) UNKNOWN (155FT AGL) NOT LGTD
